50GHz ISI Board

Key Features

◇ Specially designed to provide a low cost, high accuracy method of introducing controlled amounts of Inter-Symbol Interference (ISI) for stress testing and general lab use

◇ Matched Differential Lines of the following eleven lengths: 1.67", 3.17", 5.93", 7.23", 8.66", 10.17", 11", 13" ,14", 15”,17”

◇ Flexible and easy to use around the lab with many different pieces of test equipment

◇ Connector pairs aligned for easy cascade of lines for added length

◇ Individually characterized s parameter data optionally available

◇ Correctly exhibits skin effect losses

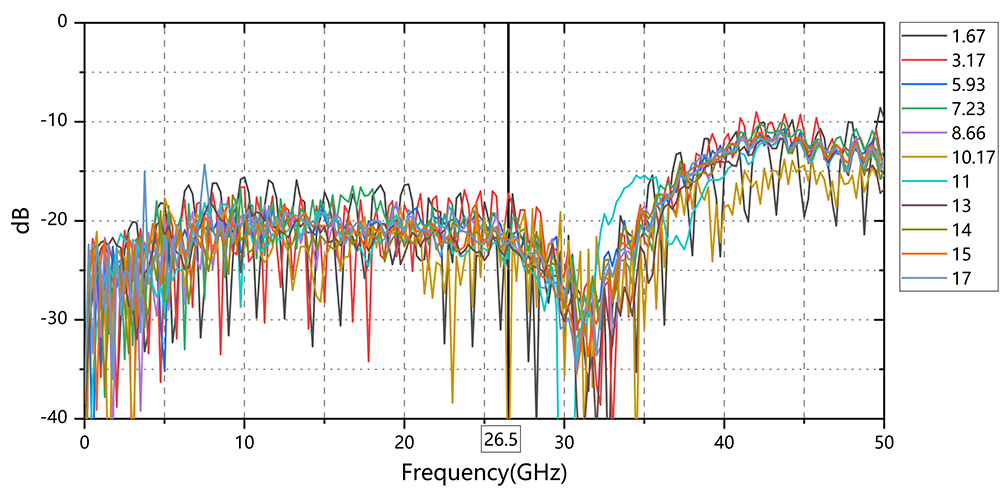

Example measured Reflected SDD11 responses for all lengths (return loss)

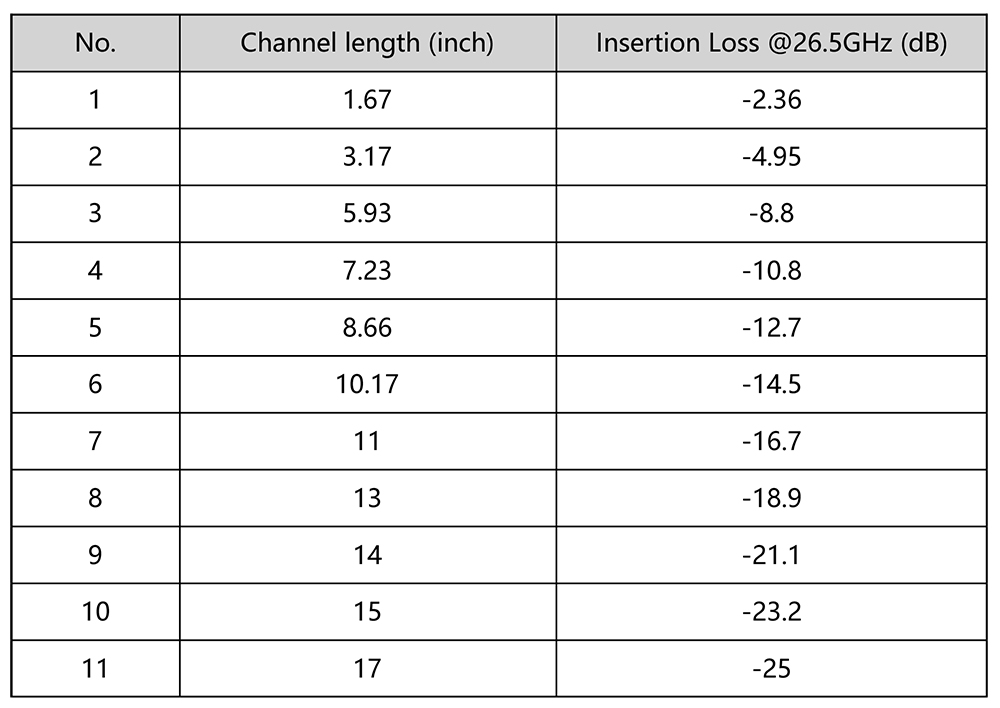

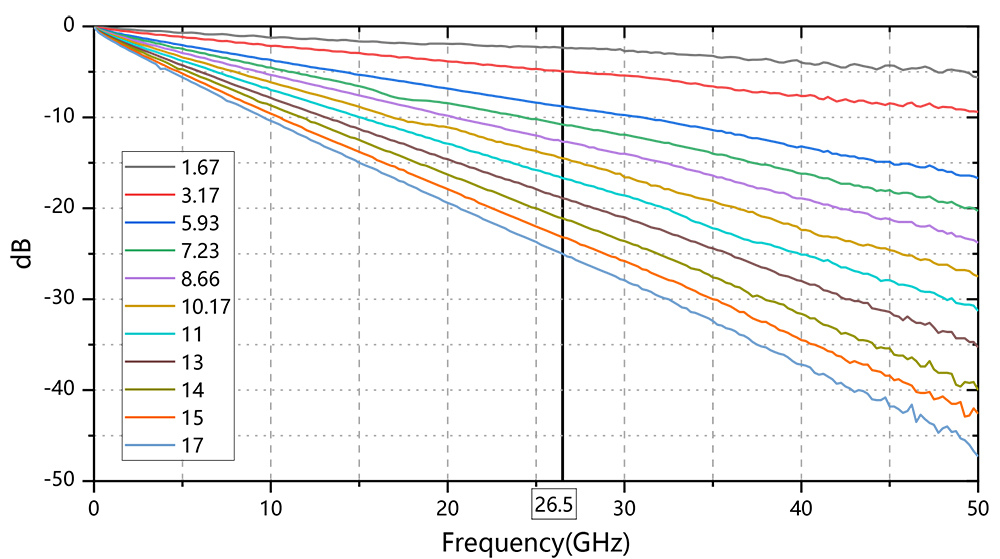

Example measured Forward SDD21 responses for all lengths (insertion loss)

*Measured performance will slightly vary from board to board; however, each individual channel board comes with a unique set of actual measured S-parameters which can be shared in advance upon request.

Compliance information

 DEB6-2208M ISI Board compliance to common standards : OIF-CEI-56/112G, relevant IEEE 802.3 standards such as bs, ck...

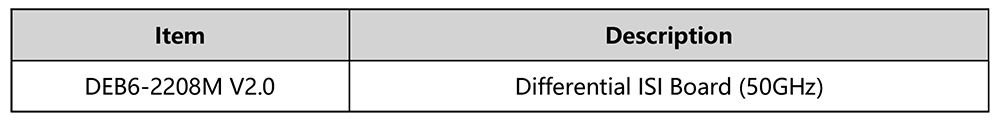

Ordering information

*Typical S parameters are available upon request.
