110GHz ISI Board

Key Features

◇ Specially designed to provide a low cost, high accuracy method of introducing controlled amounts of Inter-Symbol Interference (ISI) for stress testing and general lab use

◇ Matched Differential Lines of the following eleven lengths: 1.31", 2.80", 4.29", 5.41", 6.53", 7.28", 8.02", 8.77" ,9.51", 10.26”,11.01”

◇ Flexible and easy to use around the lab with many different pieces of test equipment

◇ Connector pairs aligned for easy cascade of lines for added length

◇ Individually characterized s parameter data optionally available

◇ Correctly exhibits skin effect losses

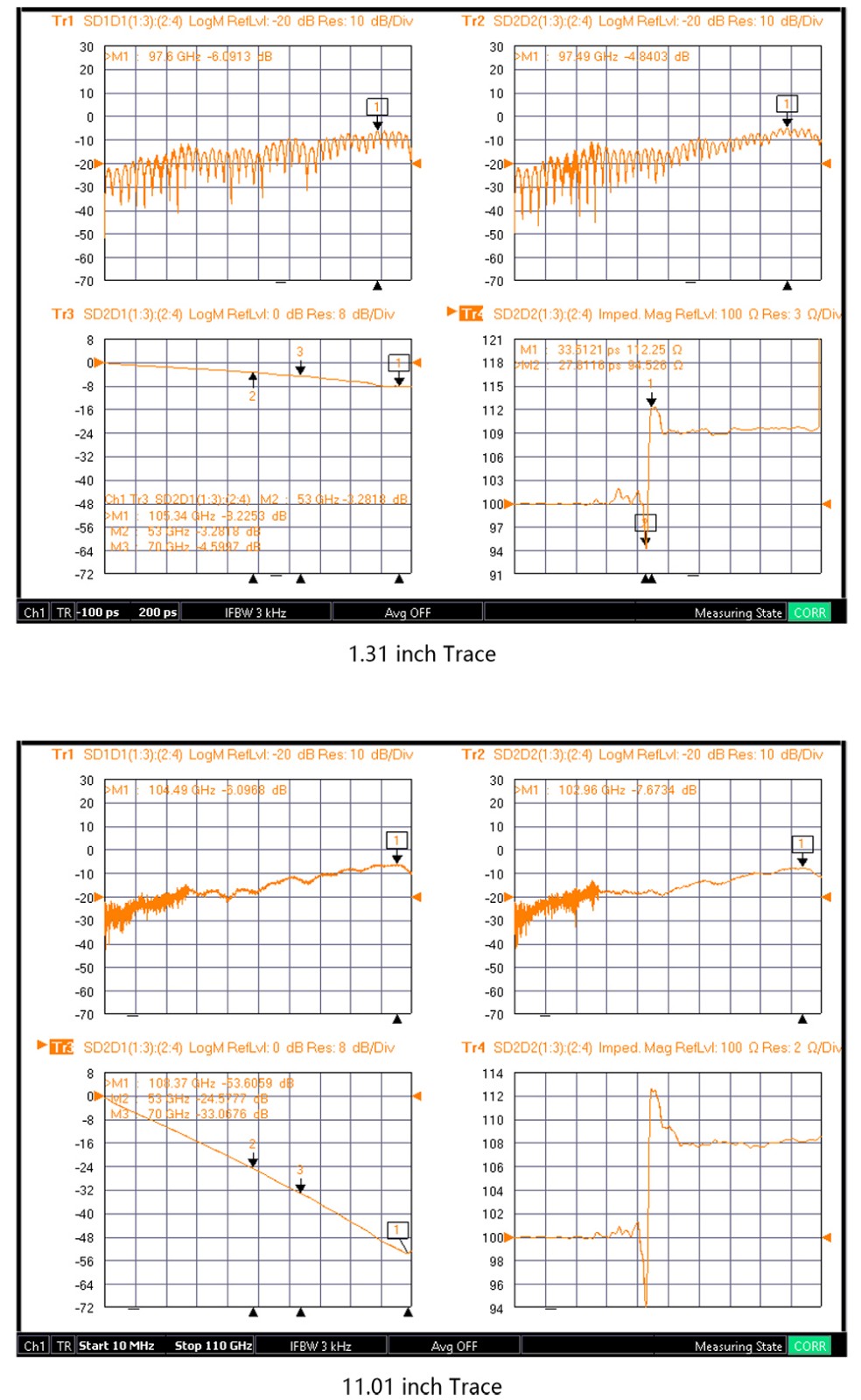

Example measured Reflected SDD21and SDD11 responses for all lengths (up to 110GHz).

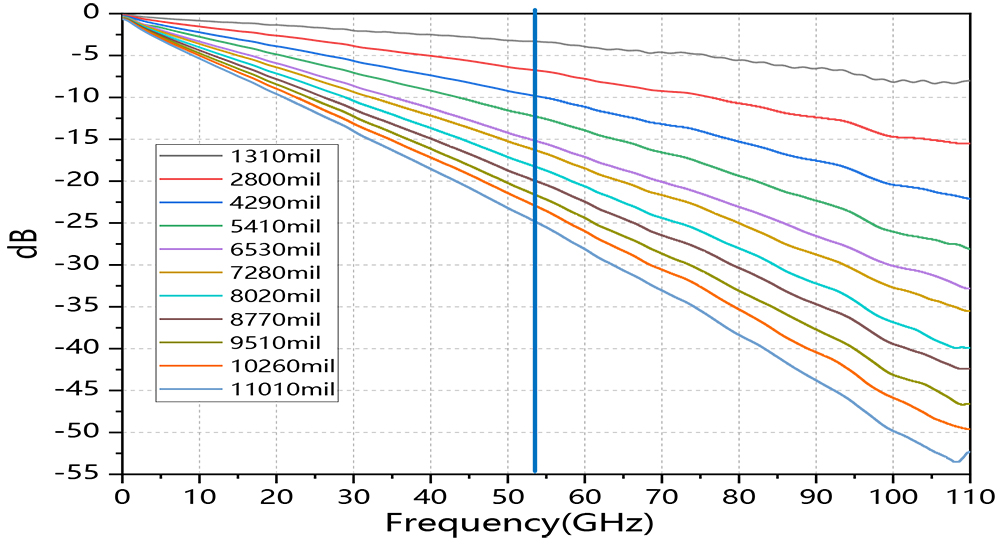

Example measured Forward SDD21 responses for all lengths (insertion loss)

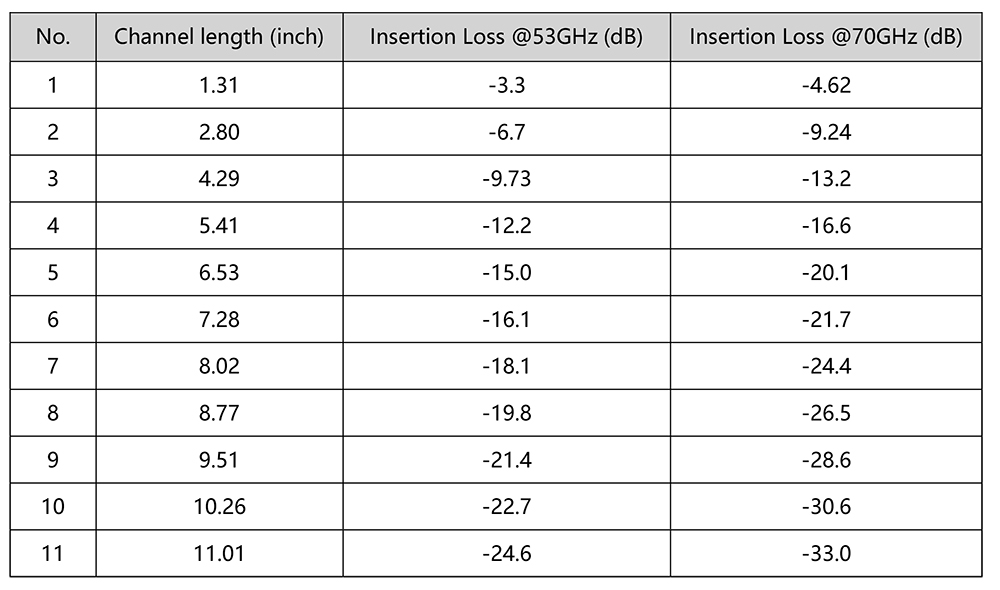

*Measured performance will slightly vary from board to board; however, each individual channel board comes with a unique set of actual measured S-parameters which can be shared in advance upon request.

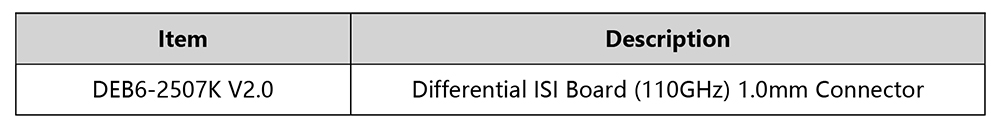

Ordering information

*Typical S parameters are available upon request.
