20G Hz ISI Board

Key Features

◇ Specially designed to provide a low cost, high accuracy method of introducing controlled amounts of inter-Symbol interference (lSl) for stress testing and general lab use

◇ Matched Differential Lines of the following nine lengths: 2.3", 3.7", 5.12", 6.52", 7.91", 11.66", 15.44," 19.61," 25.22"

◇ 0 Flexible and easy to use around the lab with many different pieces of test equipment

◇ Connector pairs aligned for easy cascade of lines for added length

◇ Individually characterized s parameter data optionally available

◇ Correctly exhibits skin effect losses

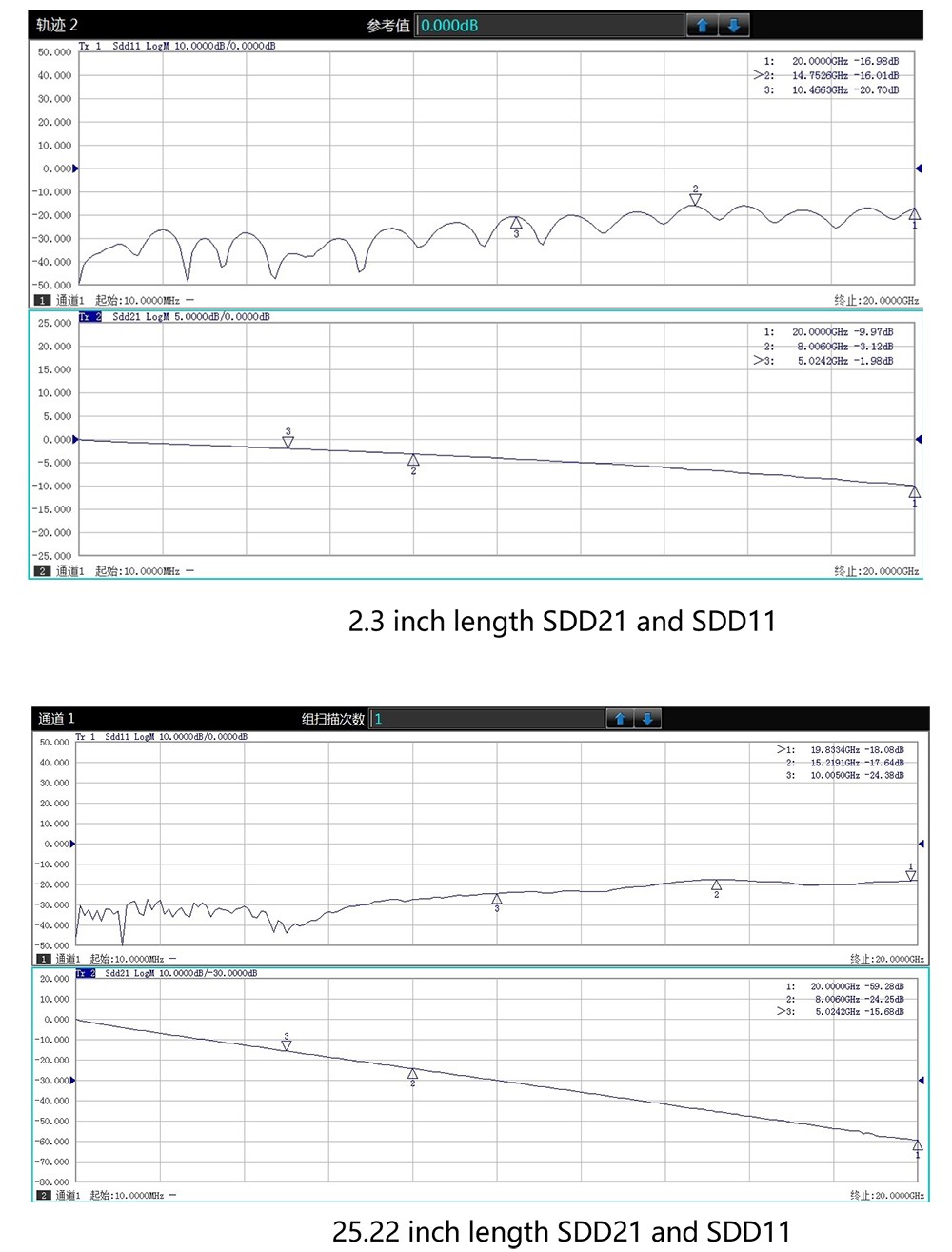

Example measured properties of 25.22 & 2.3-inch length: Forward SDD21 and Reflected SDD11

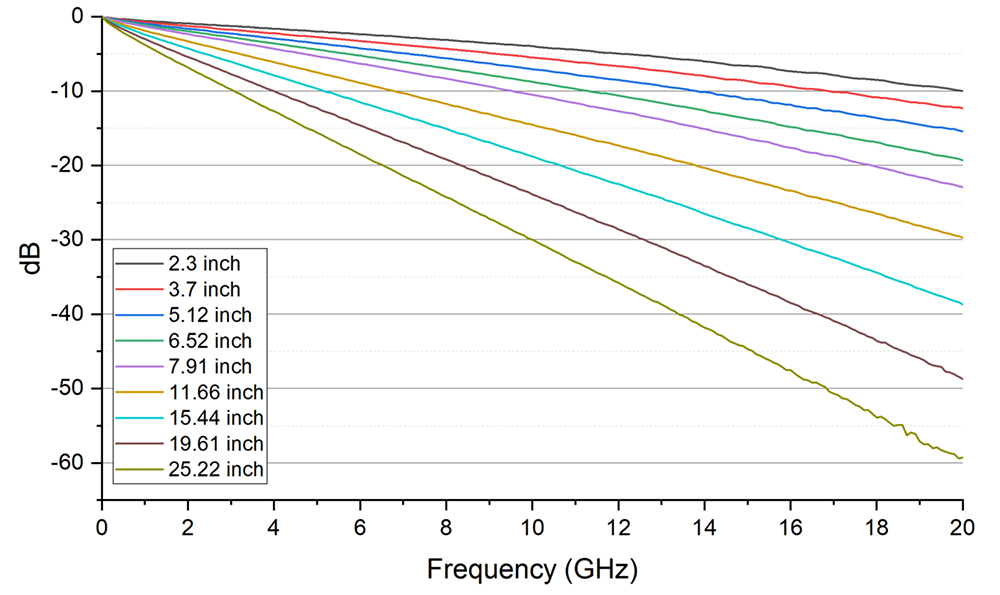

Example measured SDD21 responses for all lengths

Compliance information

DEB6-2101T1Sl Board compliance to common standards :

DisplayPort, PCl-Express, Serial Advanced Technology Attachment (SATA), Serial AttachedSCSI (SAS)，XAUI (802.3ae),10GBASE-KX4,25GBASE-KR, Fiber Channel (8xFC)...

Ordering information

*Typical S parameters are available upon request.
