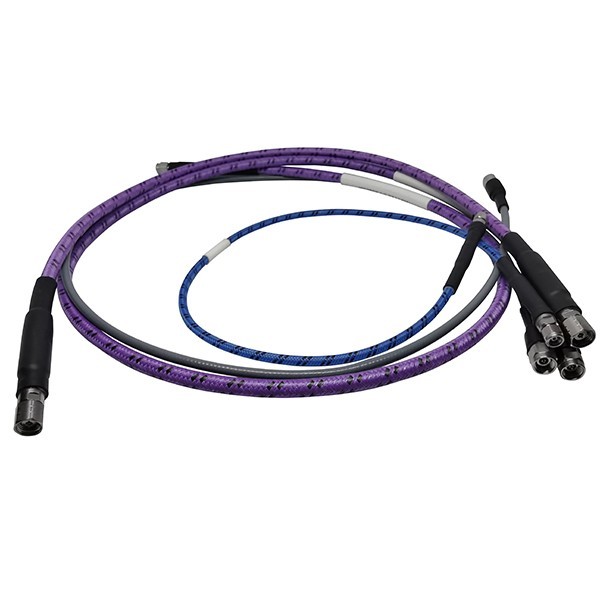

Doodoo Technology was founded in 2019 with the vision to provide signaling and test solutions. Doodoo Technology provides complete solutions for high-speed and high-frequency signal interconnection and testing, including DC-110ghz microwave cable assembly DC series; precision RF adapter DT series; precision board-mount connectors DJ series; high-density multi-coax connection solution DXM series. In addition, based on high-speed test applications, Doodoo has also developed related high-speed test fixtures and test equipment, including high-speed optical module test board, BERT, CRU etc., to meet the growing demand for high-speed signal integrity testing.
About Doodoo >
..High-speed, high-frequency interconnect
_(8300)_(9050).png)

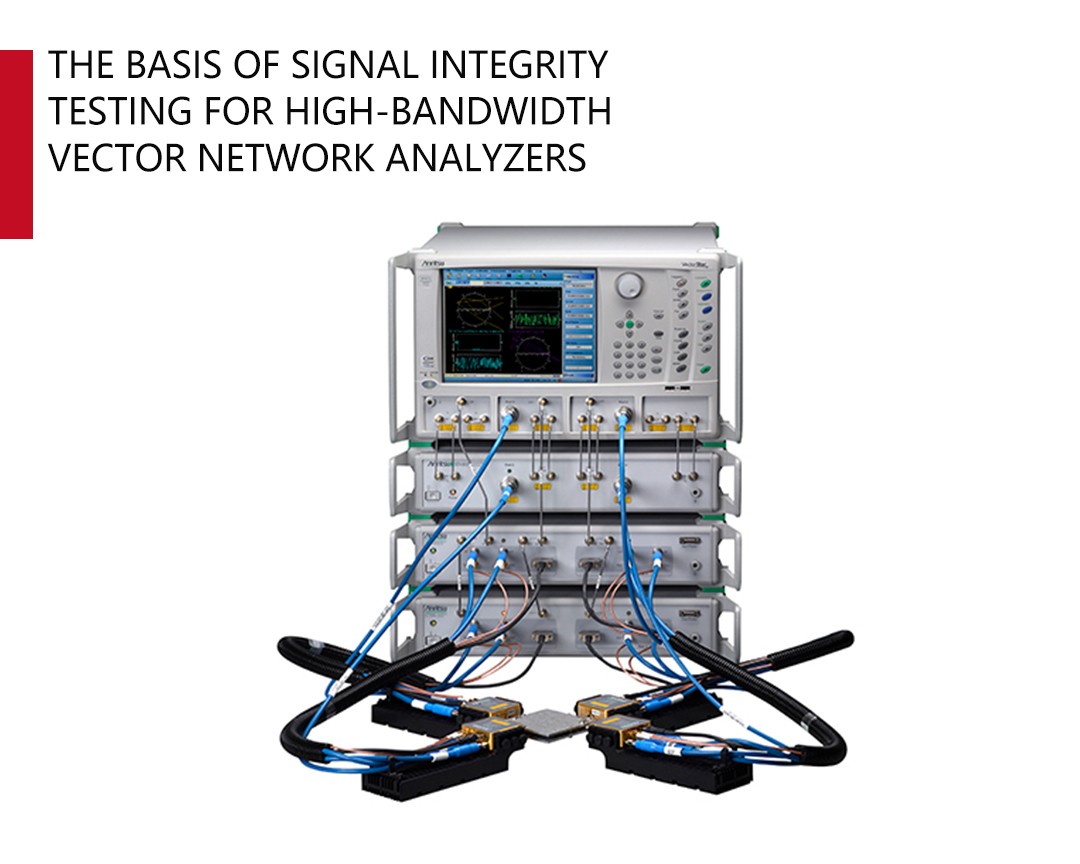

Signal integrity test
_(1330)_(7630).png)
Customized design and development
_(4530)_(9860).png)
Multi-coax Connectivity Solution-DXM Series
DEB series test fixtures
Testing instruments

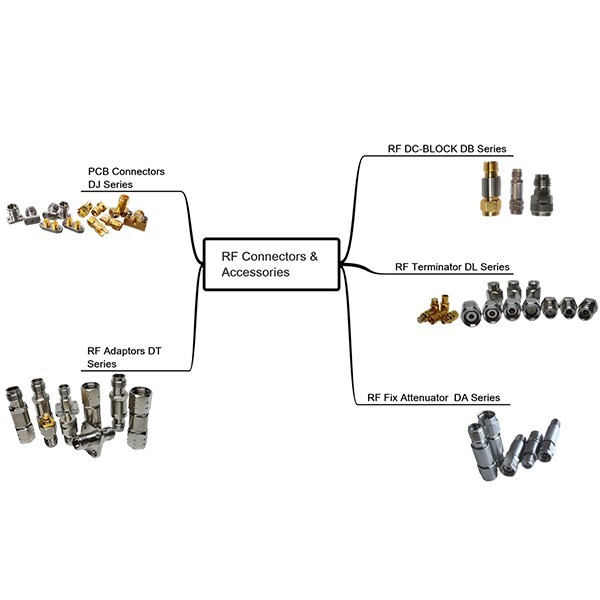

RF connectors and accessories
Customization and technical services

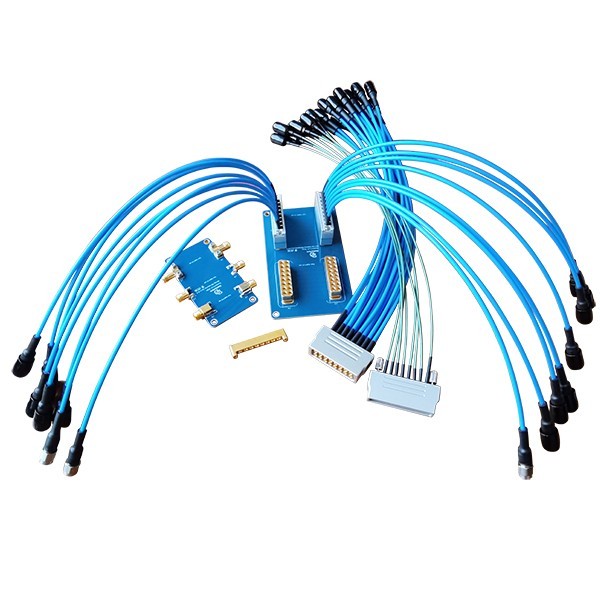

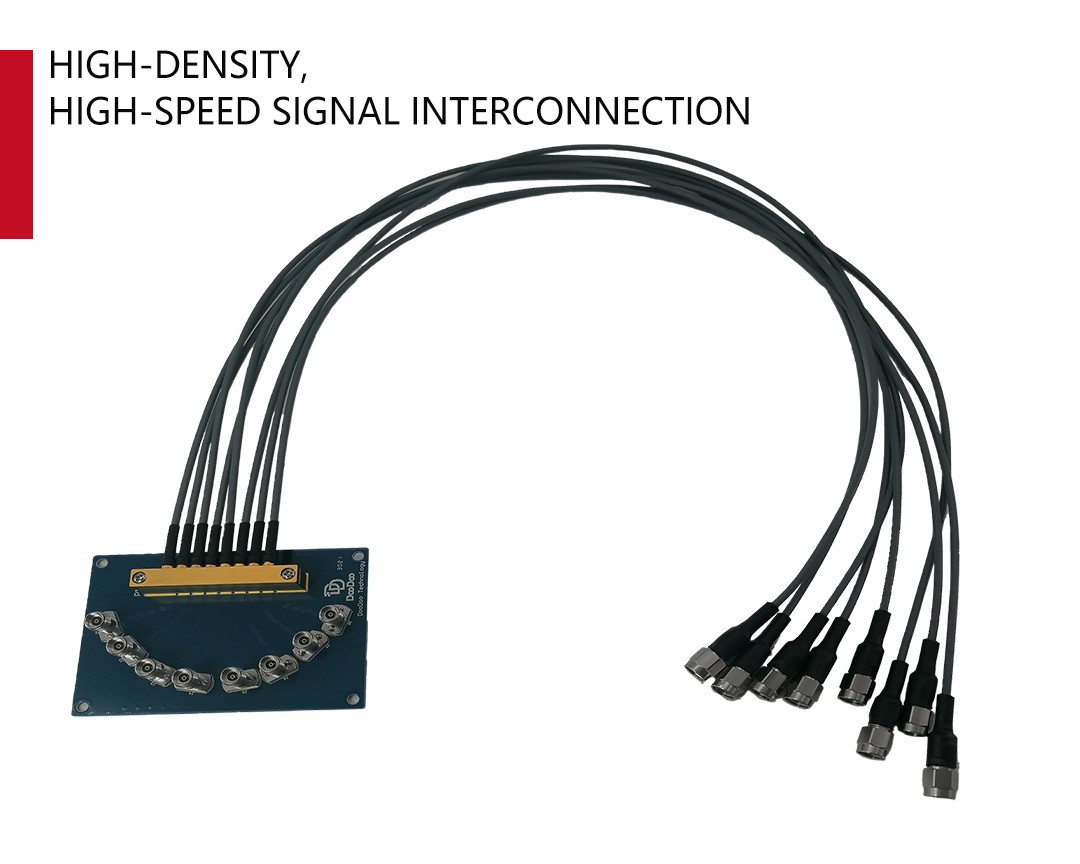

Multi-coax Connectivity Solution-DXM SeriesDoodoo technology provides high-density, more effective, more economic solution in multi-coax connectivity applications with DXM series. The DXM series solutions allow 8 or 16 channels to measure bandwidth up to 90GHz and replace imported similar products directly without altering their PCB. The DXM family includes high density connectors that can be soldered or compression mount to the PCB as well as high frequency, low loss, easy mating. |  |

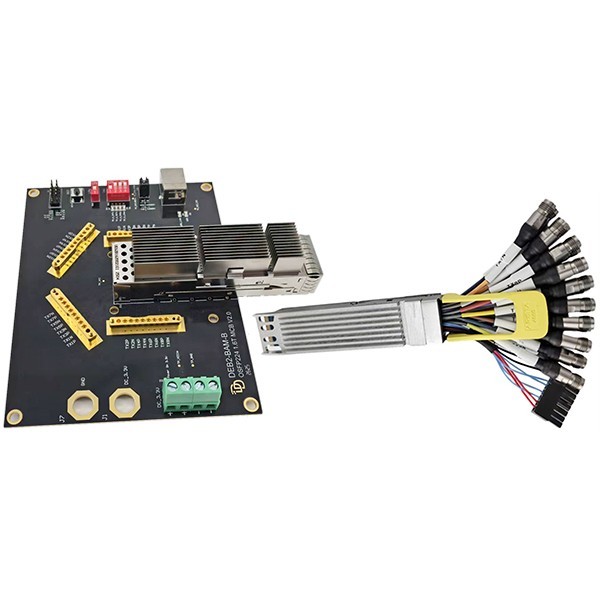

Optical Module Test and Evaluation Board EDB SeriesDoodoo Technology provides optical module evaluation test boards (MCBs and HCBs) such as SFP28, QSFP28, QSFP-DD, OSFP, and OSFP-XD, supporting speeds from 25Gbps to 1.6Tbps, meeting the R&D and production verification testing needs of conventional optical modules and switches. More EDB > |  |

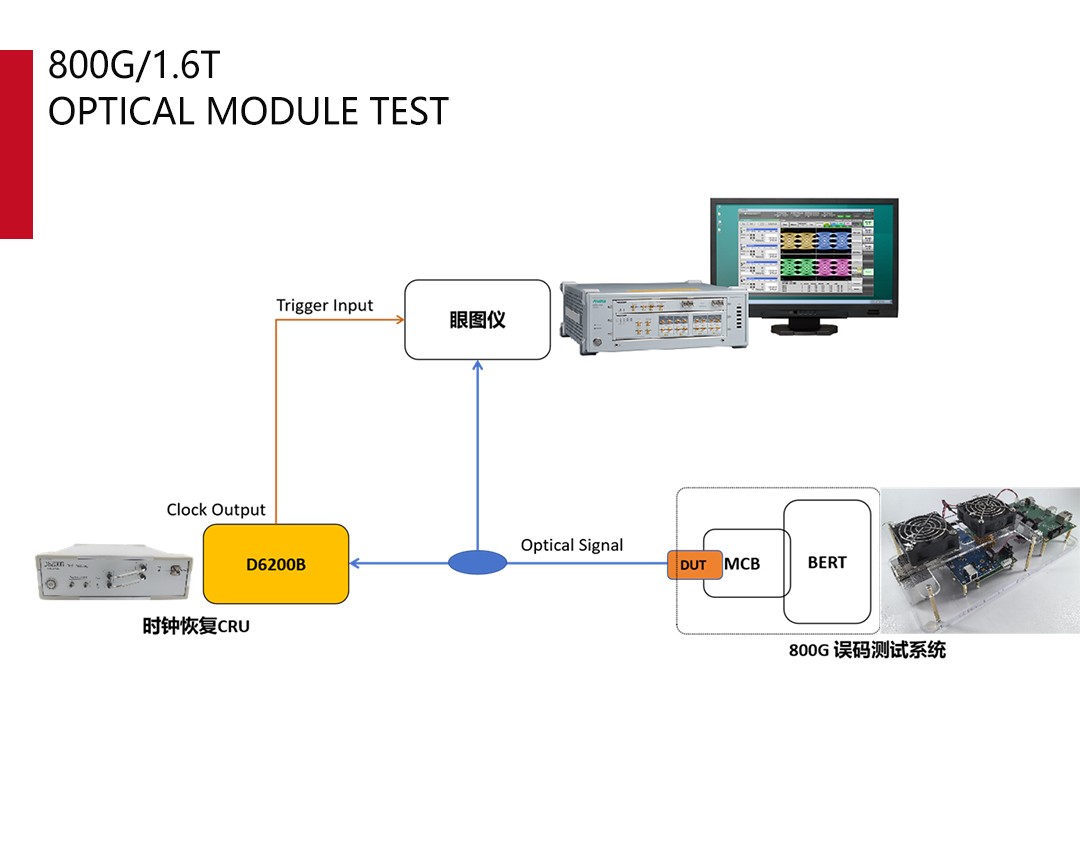

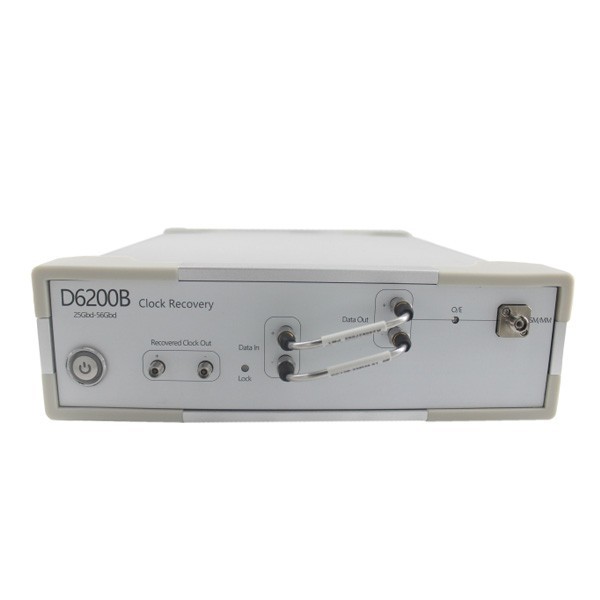

High-speed optoelectronic clock recovery unitThe D6000 series clock recovery solution provides clock support for high-speed photoelectric eye diagram testing and supports a wide range of data rates (up to 60 Gbaud). The clock recovery solution offers data clock extraction and supports both NRZ and PAM4 signals. The optoelectronic signal clock recovery integrates an electrical clock recovery unit with an amplified optoelectronic (O/E) conversion module, enabling simultaneous use in electrical and optical applications. It provides high sensitivity and low inherent jitter performance, ensuring optimal measurement accuracy. More recovery units > |  |
DJ Series RF Coaxial Board TerminalsDoodoo Technology designs PCB board connector solutions for various high-frequency testing applications from DC to 110GHz, mainly including standard specifications such as SMPM, SMA, 2.92mm, 2.4mm, 1.85mm, and 1.0mm. It also offers solderless and micro-soldering series, compatible with mainstream PCB layout solutions. More DJ series > |  |

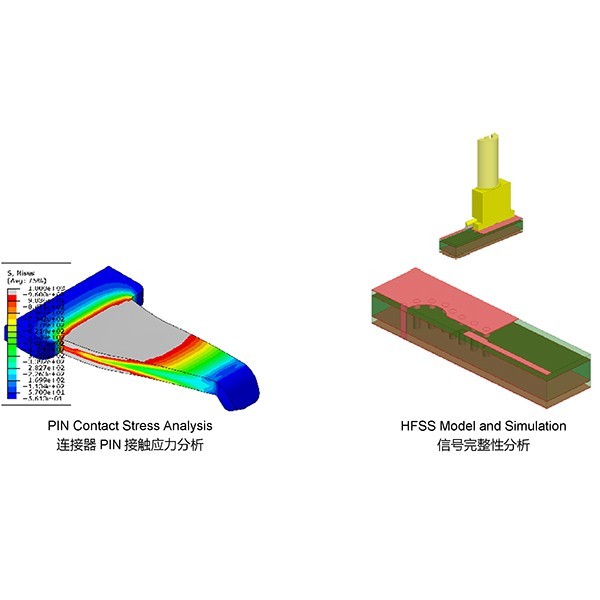

Customized designDoodoo Technology provides professional board-side connector pad R&D and design implementation services. Through 3D electromagnetic field simulation, we provide users with optimal board-side connector performance. While we offer a sufficiently comprehensive product range to meet customer application needs, some unique application scenarios still require customized product services. Based on years of accumulated technical experience, Duoduo Technology has the capability to provide unique customized services to its clients. More ISI test boards > |  |
